The Reference range demonstrates the very best that can be achieved in accuracy and musicality, and we are honored that these models are some of the most awarded loudspeakers in the world. Their designs combine the most advanced materials with advanced science and engineering, all without compromise, and all with the singular aim of transporting the listener into the heart of the music.

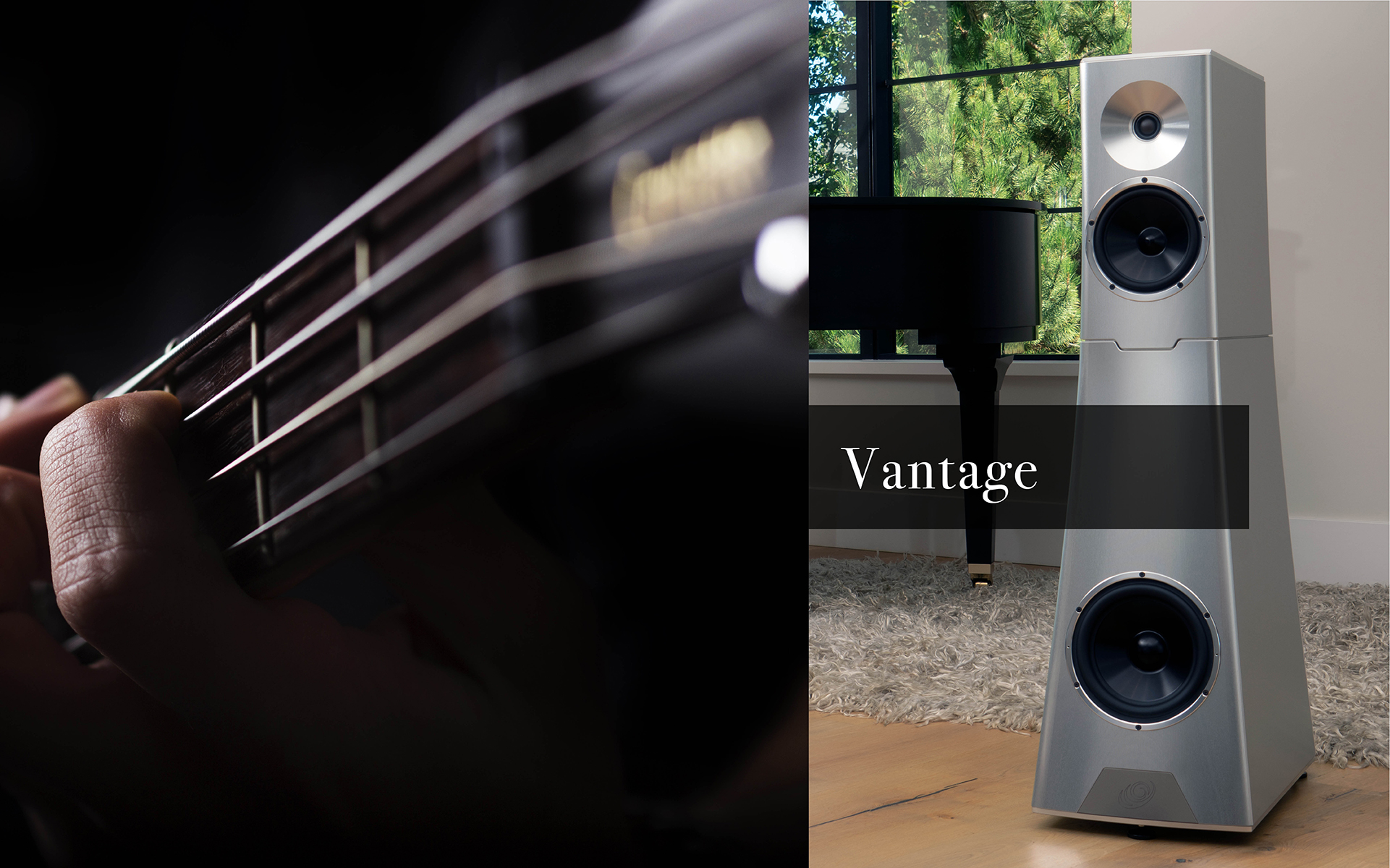

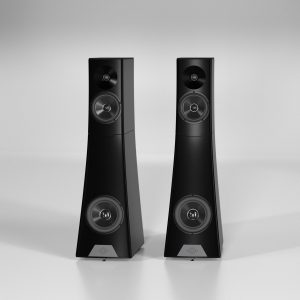

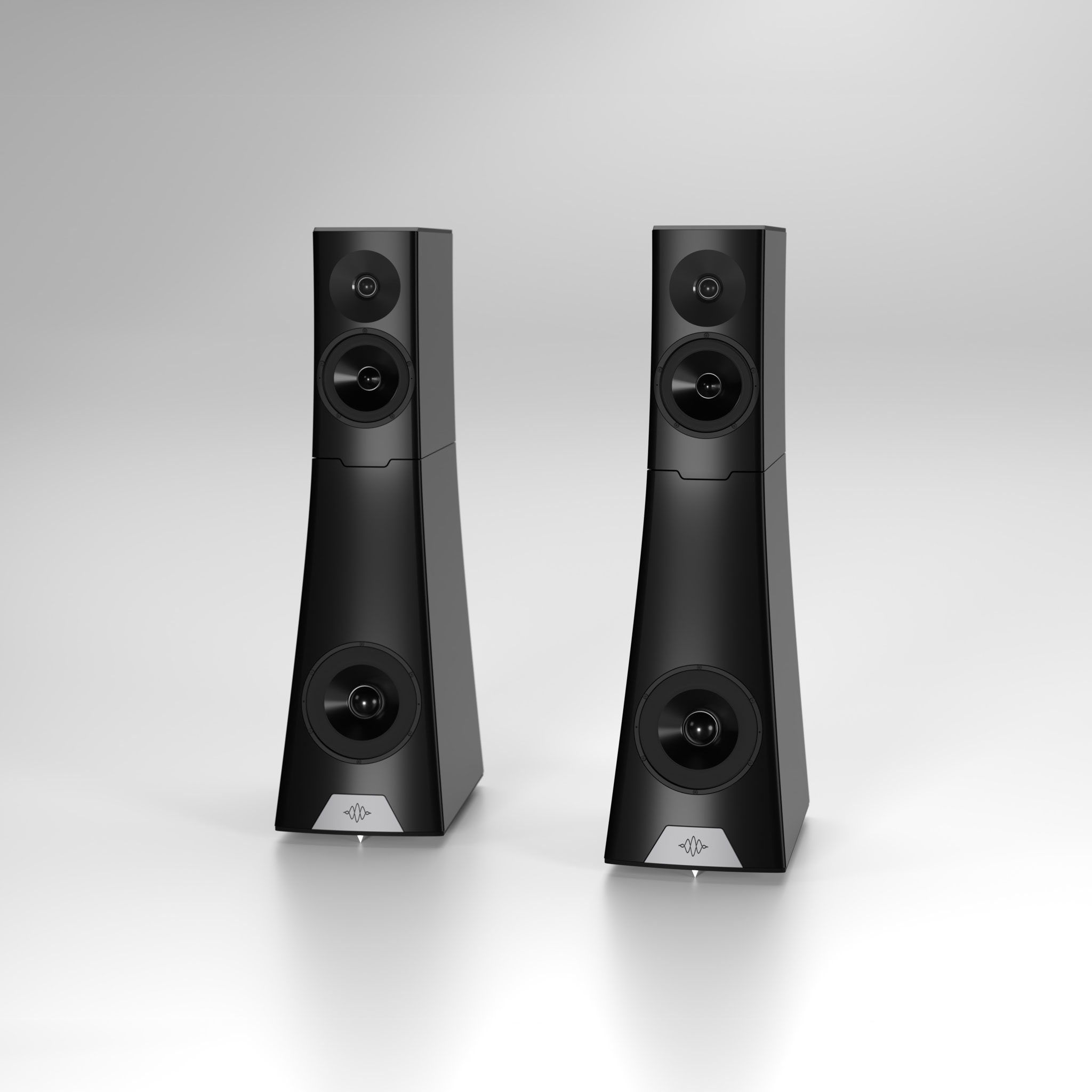

Vantage is the latest world-class speaker to be added to the award-winning Reference line. This compact three-way speaker bridges the gap between Carmel and Hailey: a compact design which still retains the additional scale and bass depth of a three-way speaker.
Vantage is constructed from the same materials and precision production methods deployed in the production of our flagship, Sonja XV. Like its predecessors, Vantage is a transducer that delivers exceptional, life-like sound: accurate, tuneful and enjoyable with all genres of music.
The Reference speakers are structured entirely from high-grade aerospace aluminum, machined in-house to incredible precision. With thousands of individual, precision-machined parts in each cabinet of the largest models, these speakers are painstakingly hand-built by experts in our Colorado workshop.
Our BilletCore drivers are cone-drivers machined from solid billet, offering some of the highest performance and lowest distortion in any driver available today. Combined with our ForgeCore and BilletDome tweeters, they allow the Reference range to achieve an exceptional level of accuracy, transient response, dynamics and musicality.
Crossovers constructed from the highest quality components are designed and tuned using proprietary, in-house modelling. They offer exceptional amplitude response across frequencies and incredible phase alignment across the crossover range.
±2 dB in the audible band
±5° relative phase throughout entire overlap
Usable output extends from 26 Hz to above 40 kHz
ForgeCore ultra-low distortion tweeter
BilletCore ultra-high-rigidity woofer and mid-woofer
Woofer: 22 cm (8.75")
Mid-woofer: 18.5 cm (7.25")
Vantage is fully-passive
Proprietary DualCoherent crossover at 65 Hz and 1.75 kHz
Designed using software developed in-house
ViseCoil bass inductors reduce residual loss and improve linearity for greater bass impact and an easier job for most amplifiers
ToroAir inductors eliminate cross-talk
4 Ohms nominal
3 Ohms minimum
44 x 13 x 21" (H x W x D)
112 x 32 x 54cm (H x W x D)
159lbs per speaker
72kg per speaker
Vantage is available in three finish types: anodization, ChromALure, and high gloss paint. Contact your dealer for more information.
